Basic Information of LED Channel Letter

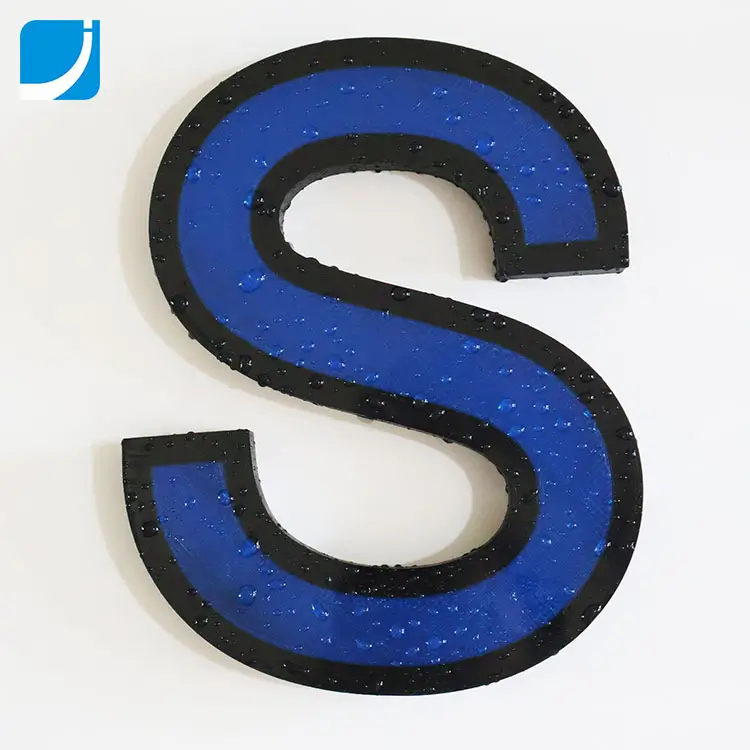

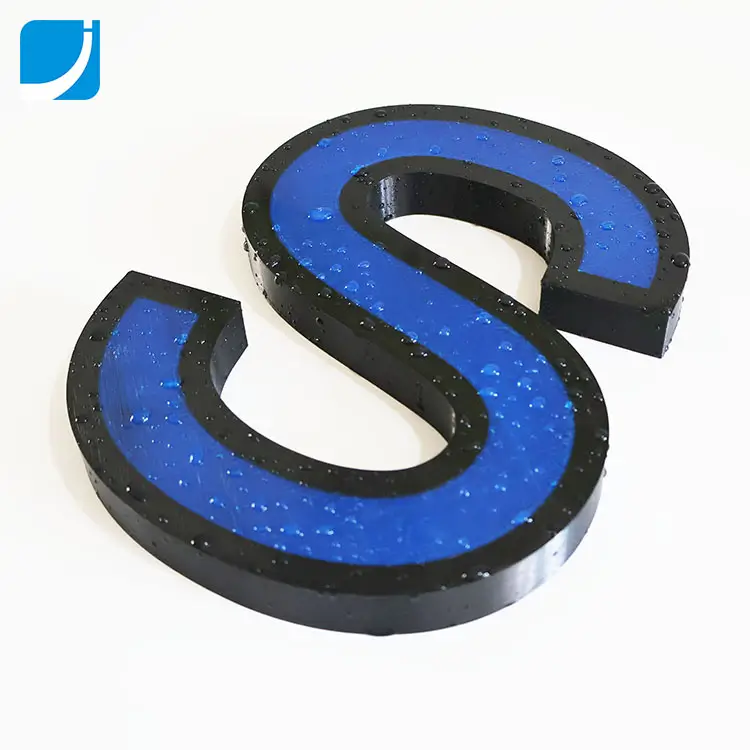

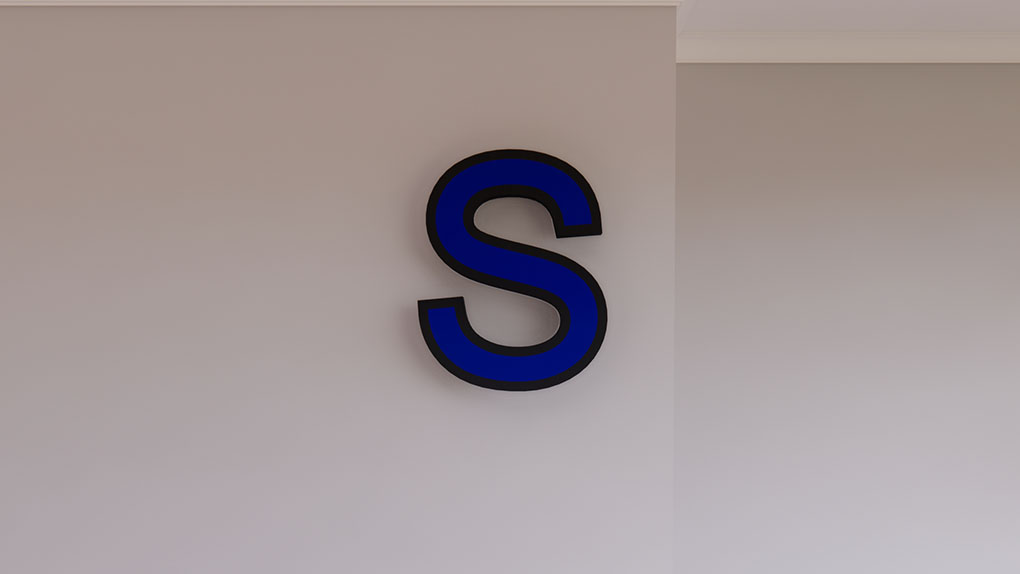

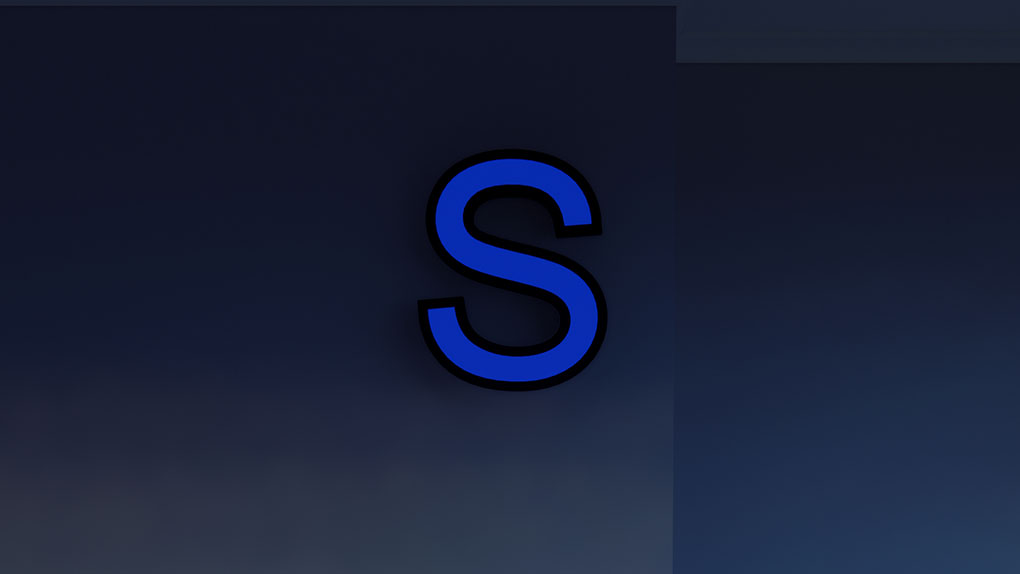

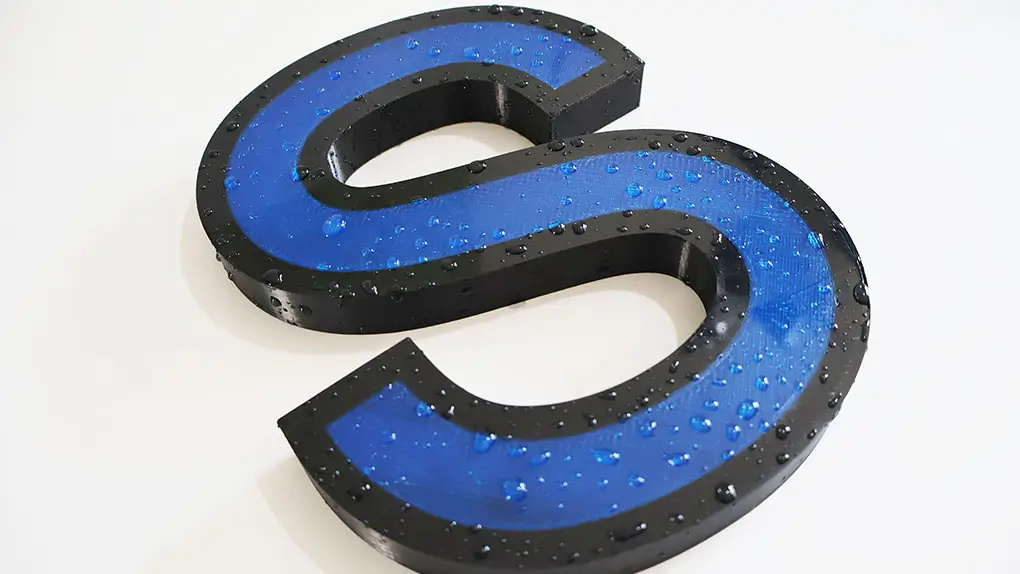

This is a 3D printed channel letter S, it is a three-dimensionally fabricated letter with a channel back, typically used exterior or interior as storefront, brand logo, business name, or wayfinding, etc. This illuminated channel letter is comprised of three parts, the face panel and side wall as an entire first part, the bottom panel as second part, the LED strip light as third part. The face panel is a trimmed face with 2 different colors, opaque black and translucent blue, the side wall is with a single color opaque black, the light can not be through the opaque color but can be through the translucent color, so this channel letter is front-lit, but not side-lit or back-lit. However, we can make it side-lit or back-lit when it is required.

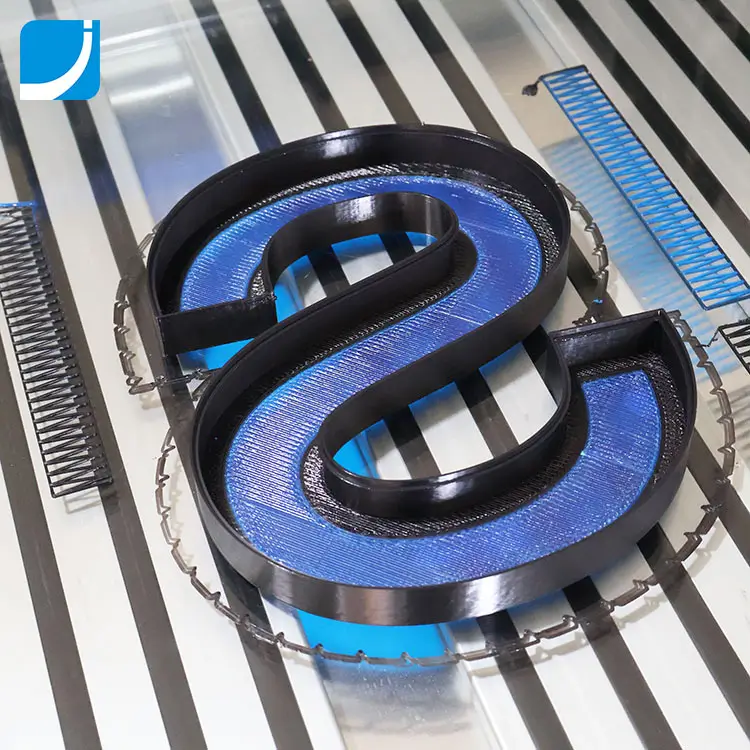

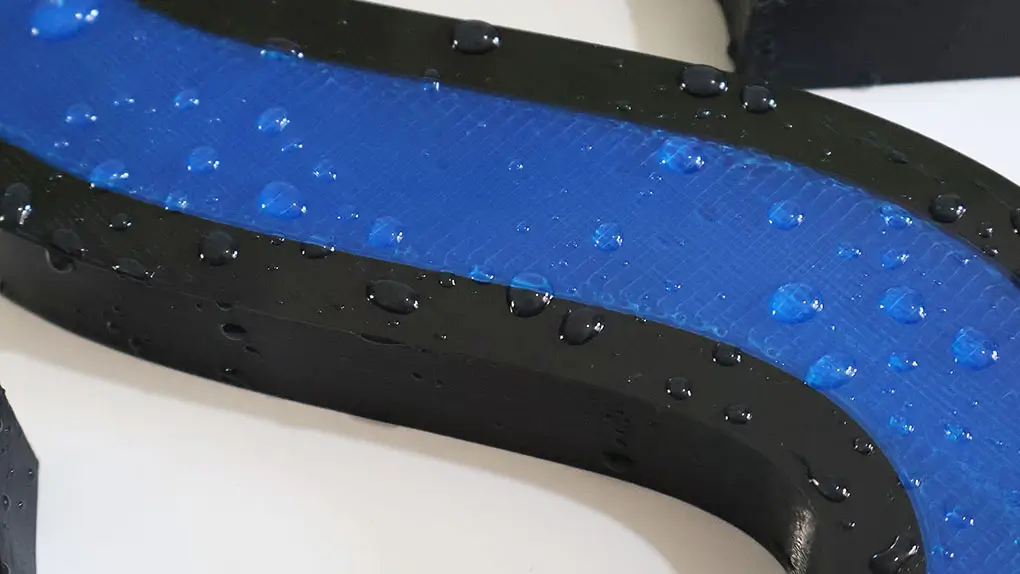

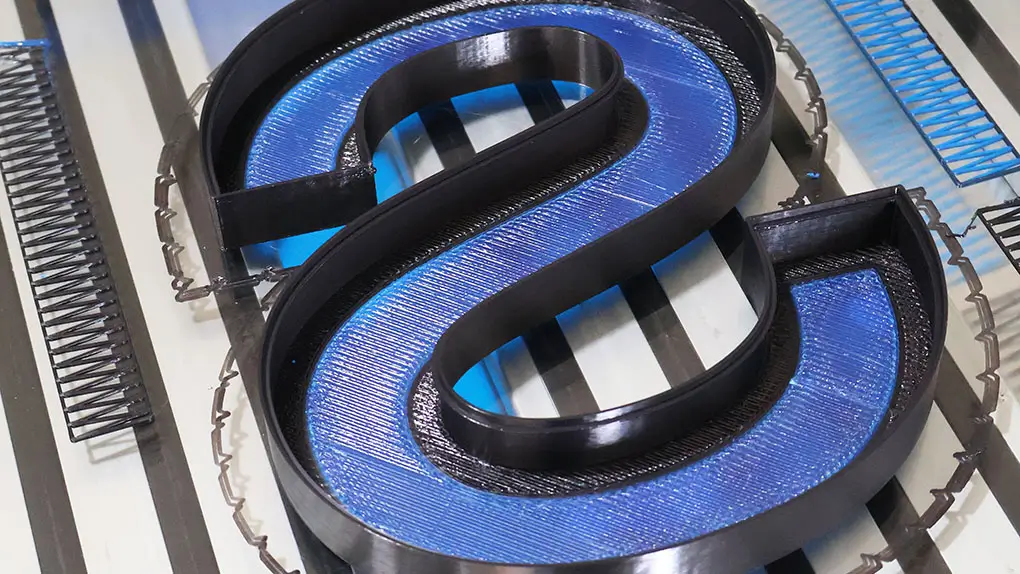

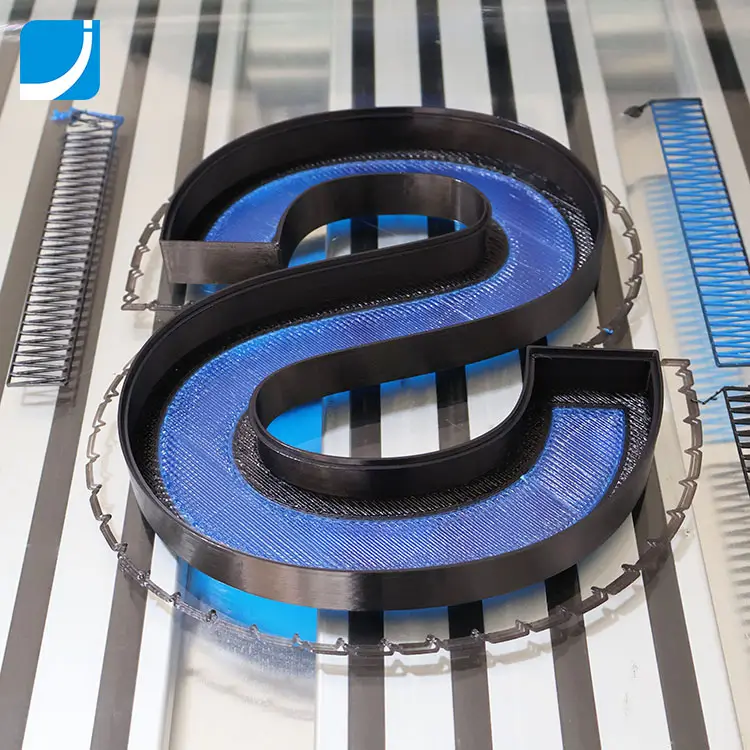

The trimmed face panel with 2 colors is not made by UV printing, not solid acrylic panel, not liquid acrylic with UV curing, it is made by 3D printing. The side wall with single color is not made by a bending machine, it is also made by 3D printing. The bottom panel can be made by a laser cutting machine with PVC panel, or it can be made by 3D printing as well. The 3D printing material is also called 3D printing filament PETG-S from the R&D department of IROGA 3D, it is designed to make all kinds of 3D printed products under the FDM (Fused Deposition Modeling) mode, but especially good for outdoor illuminated letters and signages, because PETG-S is weather resistant and with perfect light diffusing effect for LED strip lights and LED module lights.

As mentioned above, this trimmed letter S is made by a 3D printing machine with 3D slicing software, including the face panel and side wall, even the bottom panel can be made by the 3D printing machine if you need. The 3D letter printing machine is also called 3D letter printer, 3D sign printer, or 3D logo printer, it is an additive manufacturing machine in FDM mode, designed to produce three-dimensional letters, signages, or logos, without traditional laser cutting, welding, bending, drilling, or UV curing.

As a manufacturer focusing on 3D printing machines and 3D printing materials, IROGA 3D have released a new generation of MITO 3D letter printer, with much better performance in different ways, for instance, Klipper firmware to support faster printing speed, higher Z-axis height to support more letter depth, black steel material to support more durable nozzles, latest hotend to support faster heating speed of nozzle, stronger frame of X and Y axis to support more precise printing, and an extra filament dryer to support better quality printing.



Parameters of 3D Channel Letter Printer ( MITO-80 & MITO-120 )

Item	MITO-80	MITO-120
Interface Language	EN / ES / FR / IT / RU / CN	EN / ES / FR / IT / RU / CN
Packaging Size	1390 x 1340 x 870 MM	1800 x 1700 x 870 MM
Printer Size	1230 x 1100 x 700 MM	1630 x 1500 x 700 MM
Maximum Printing Size	800 x 800 x 90 MM	1200 x 1200 x 90 MM
N.W. / G.W.	95 KG / 140 KG	130 KG / 195 KG
Voltage	110 V / 220 V	110 V / 220 V
Power	720 W	1000 W
Frequency	50 HZ / 60 HZ	50 HZ / 60 HZ
Printing Mode	FDM (Fused Deposition Modeling)	FDM (Fused Deposition Modeling)
Printing Speed	30 ~ 100 MM/S	30 ~ 100 MM/S
Platform Temperature	50 ℃	50 ℃
Nozzle Temperature	230 ℃	230 ℃
Nozzle Aperture	0.6 MM / 0.8 MM	0.6 MM / 0.8 MM
Compatible Filament	PLA / PETG / ASA / ABS	PLA / PETG / ASA / ABS
Filament Diameter	1.75 MM	1.75 MM
Filament Installed Quantity	3 Rolls	3 Rolls
HS Code	8485200000	8485200000





Traditional Signage Machine     VS     3D Channel Letter Printer

Item		Traditional Sign Machine	Modern 3D Sign Printer
Machine Type		Bending Machine, Welding Machine, Cutting Machine, Engraving Machine, etc	One 3D Sign Printer Is Enough
Machine Investment		More Investment	Less Investment
Material Cost		More Expensive (Acrylic Face & Metal Side)	Less Expensive (3D Printing Filament)
Material Waste		More Waste	Less Waste
Manufacturing Mode		Subtractive Manufacturing	Additive Manufacturing
Type of Work		More Manual Work	More Automatic Work
Labor Cost		More Workers, More Cost	Less Workers, Less Cost
Sign Face Color		Single Face Color Only	Multiple Face Colors Available
Sign Face Style		Flat Face Only	Flat Face or Mesh Face
Sign Side Color		Single Side Color Only	Multiple Side Colors Available
Sign Side Style		Straight Side Only	Straight Side, Beveled Side, or Curved Side
Sign Grade		Simple Sign Only	Simple Sign or Complicated Sign
Illuminating Option		Frontlit or Backlit	Frontlit, Sidelit, or Backlit
Working Space		More Space Required	Less Space Required
Workshop		Messy	Tidy
UV Resistance		Less UV Resistant	More UV Resistant for Longer Outdoor Use





Parameters of Filament Consumption of Letter S in Different Sizes (Including Letter Front & Letter Side)

Letter Name (Channel Letter)	Letter Size (H x W x D)	Consumed Filament Length (per Letter)	Consumed Filament Weight (per Letter)	Consumed Filament Cost (per Letter)	Letter Quantity (per Roll of Filament)
Letter "S"	100 x 77 x 10 MM	4.71 meters	14.10 grams	USD 0.16	70.9 letters
Letter "S"	200 x 154 x 20 MM	18.23 meters	54.58 grams	USD 0.62	18.3 letters
Letter "S"	300 x 231 x 30 MM	39.34 meters	117.82 grams	USD 1.34	8.5 letters
Letter "S"	400 x 308 x 40 MM	69.01 meters	206.66 grams	USD 2.36	4.8 letters
Letter "S"	500 x 384 x 50 MM	106.97 meters	320.34 grams	USD 3.65	3.1 letters
Letter "S"	600 x 461 x 60 MM	153.64 meters	460.09 grams	USD 5.25	2.2 letters
Letter "S"	700 x 538 x 70 MM	208.25 meters	623.63 grams	USD 7.11	1.6 letters
Letter "S"	800 x 615 x 80 MM	271.16 meters	812.02 grams	USD 9.26	1.2 letters
Letter "S"	900 x 692 x 90 MM	343.00 meters	1027.13 grams	USD 11.71	0.9 letters
