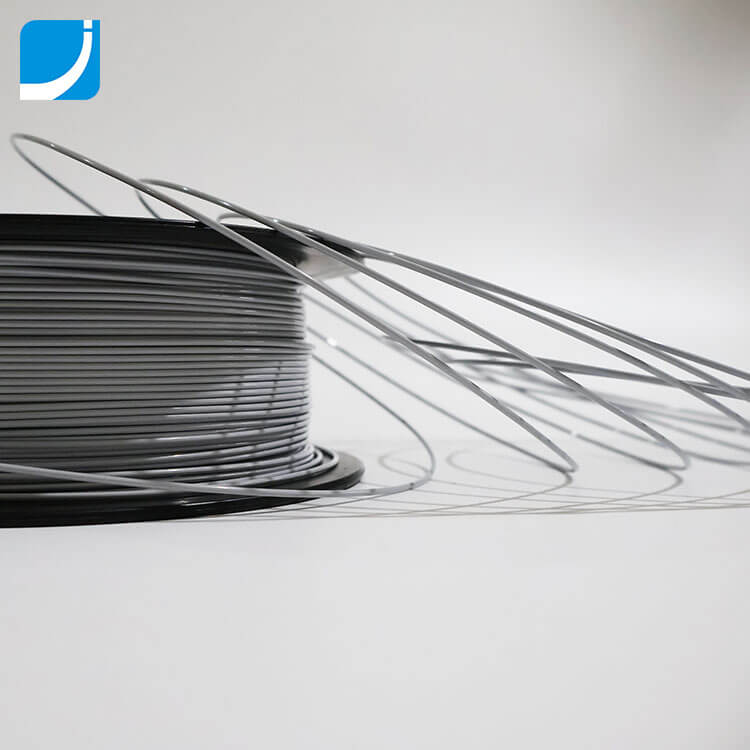

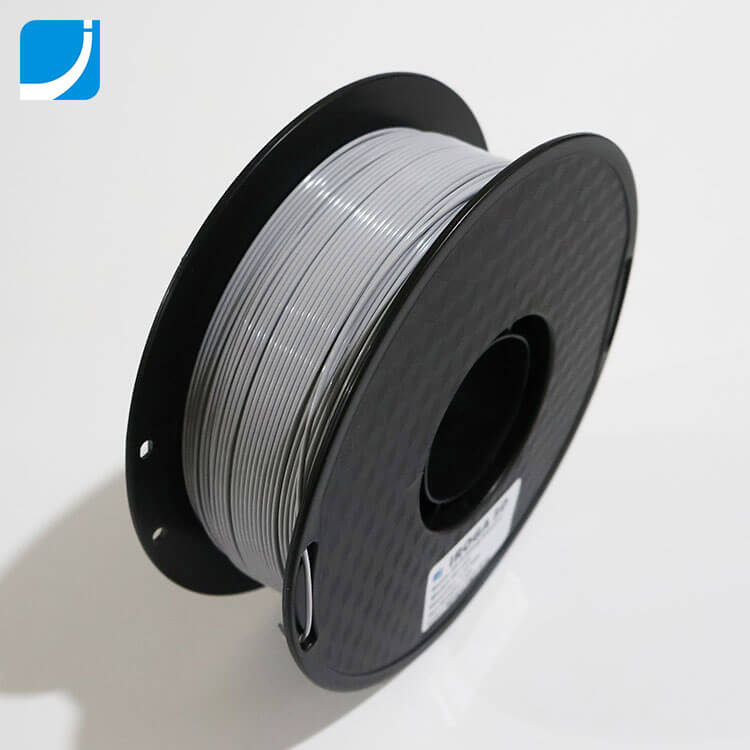

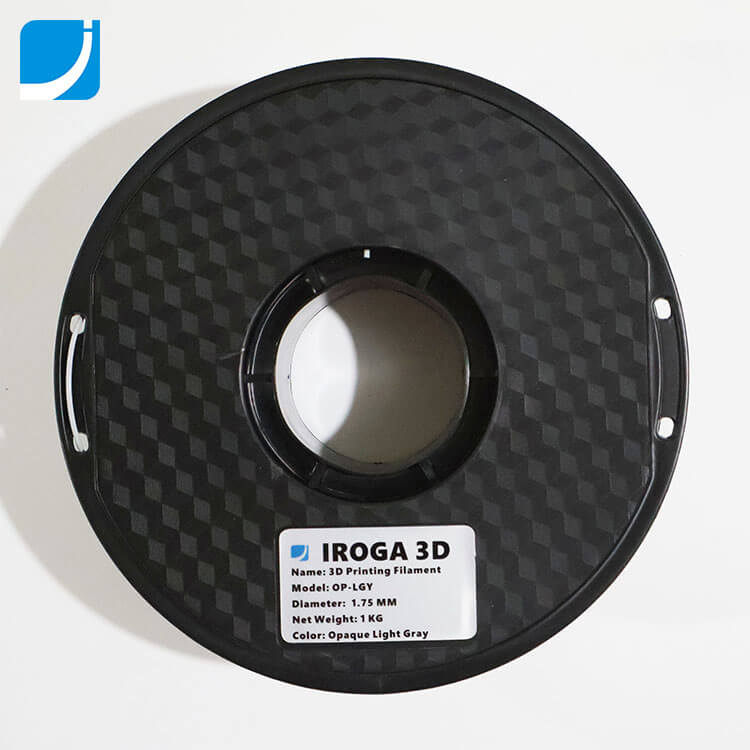

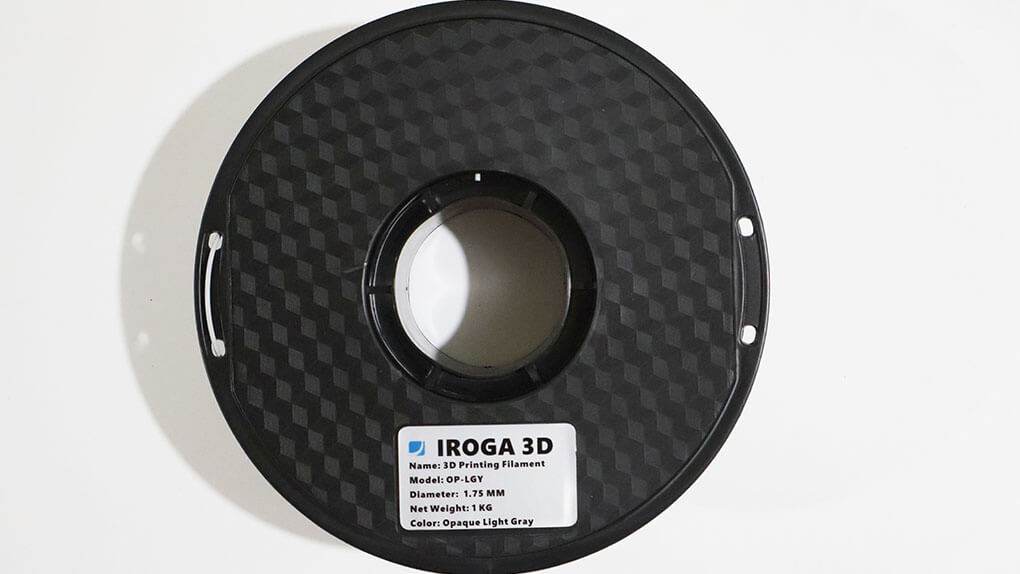

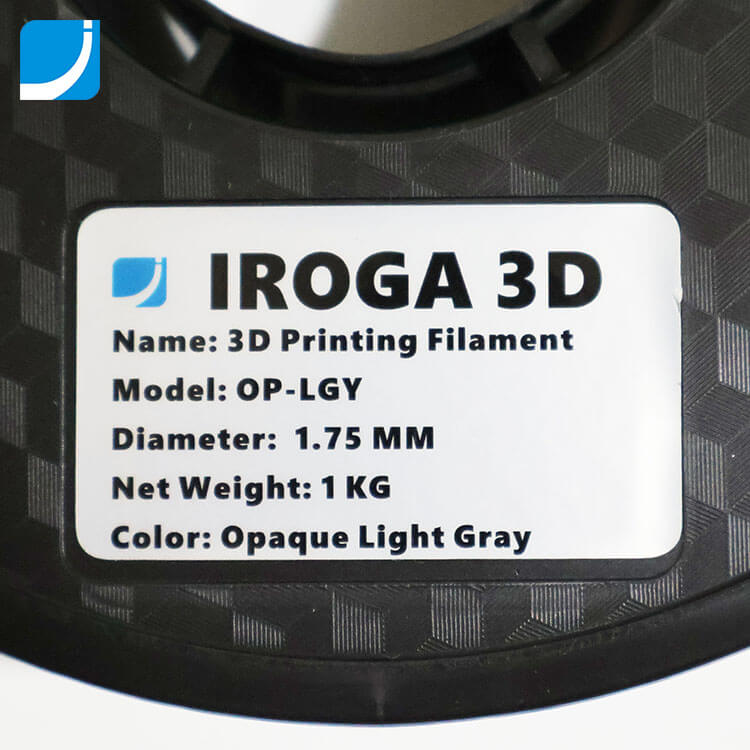

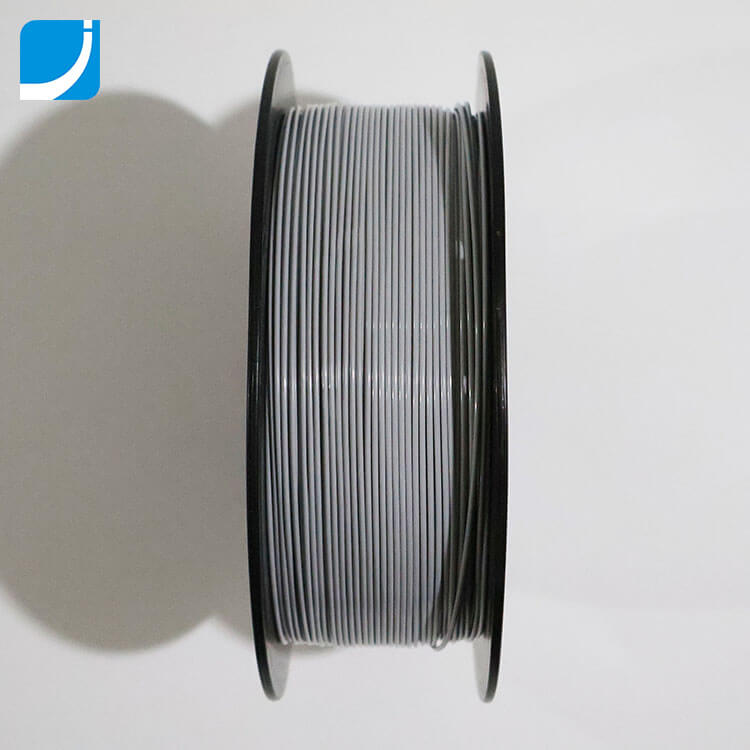

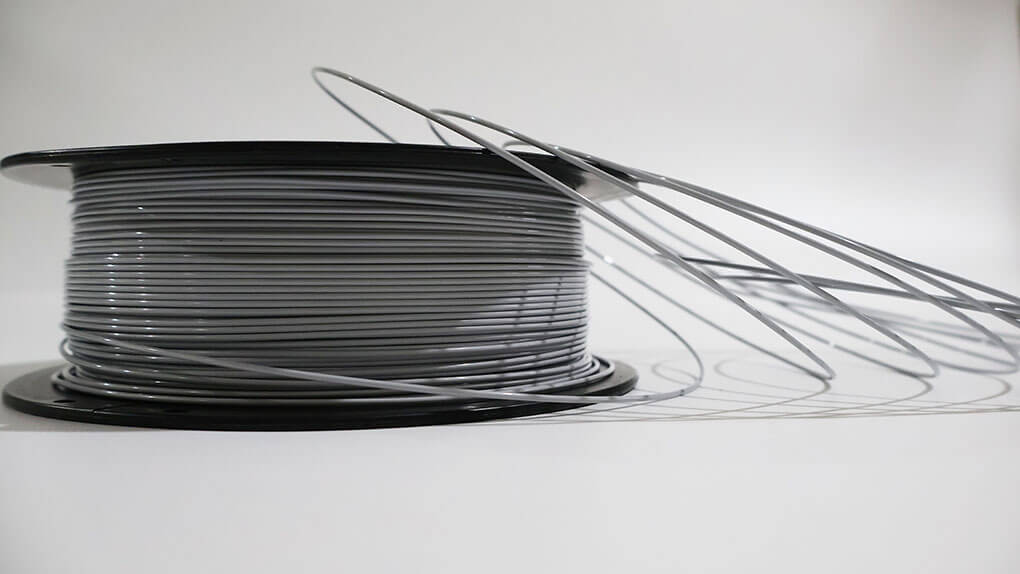

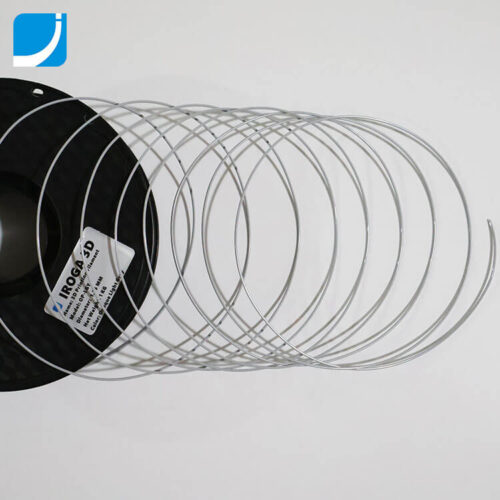

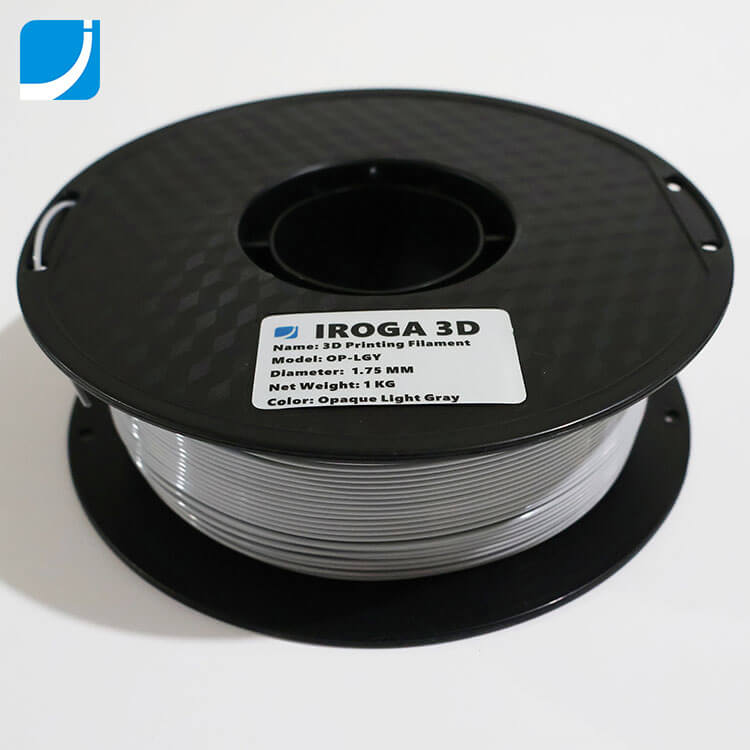

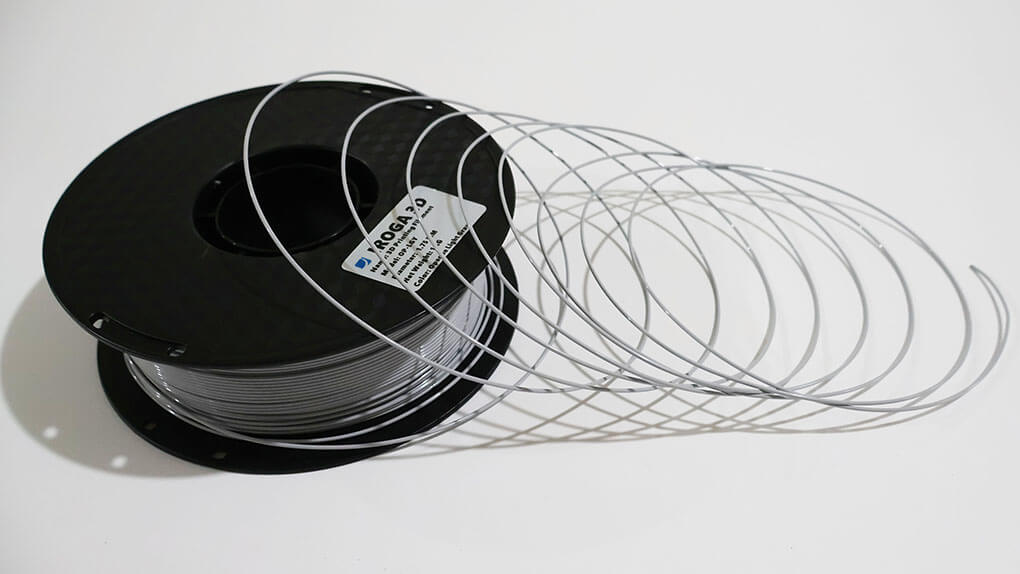

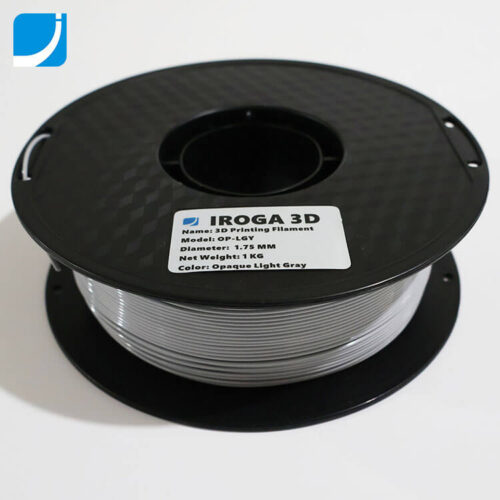

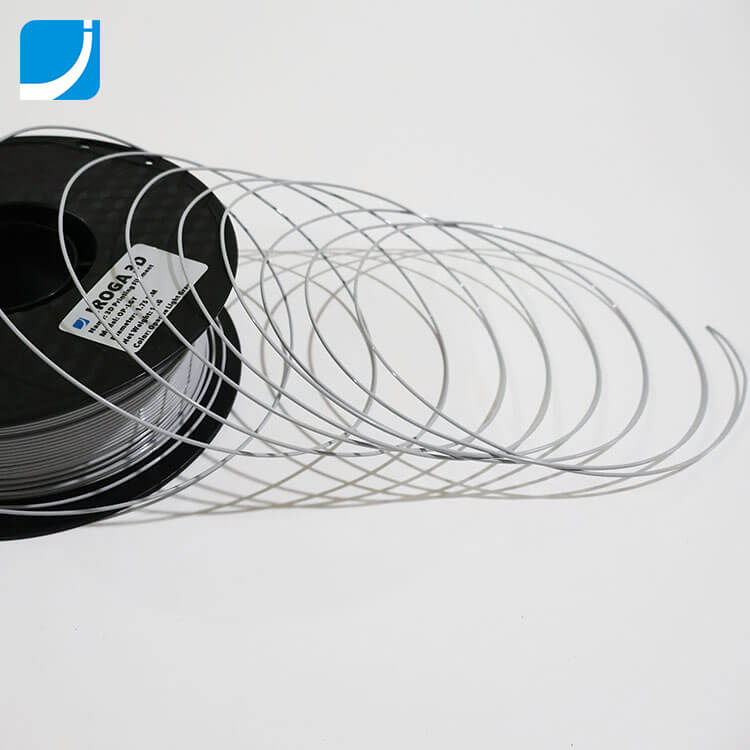

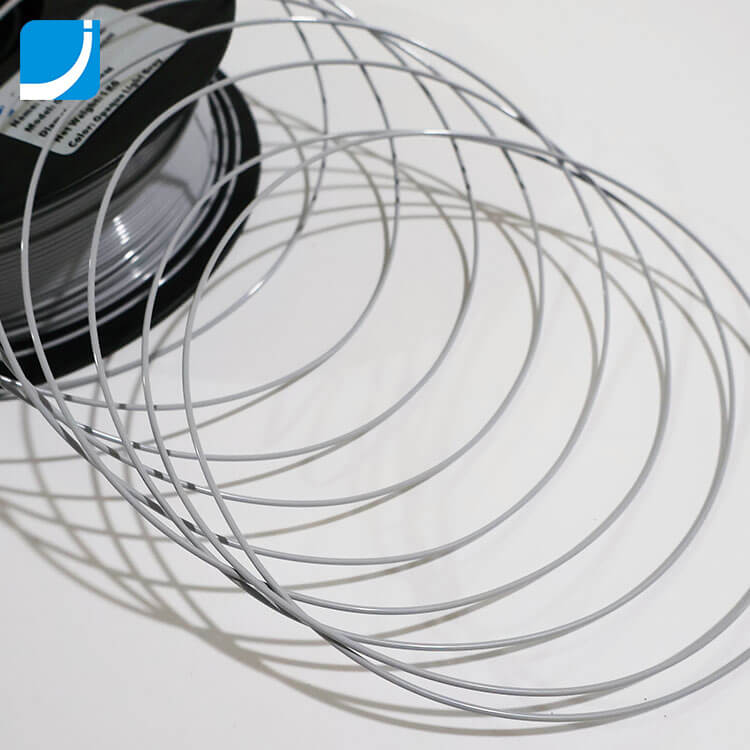

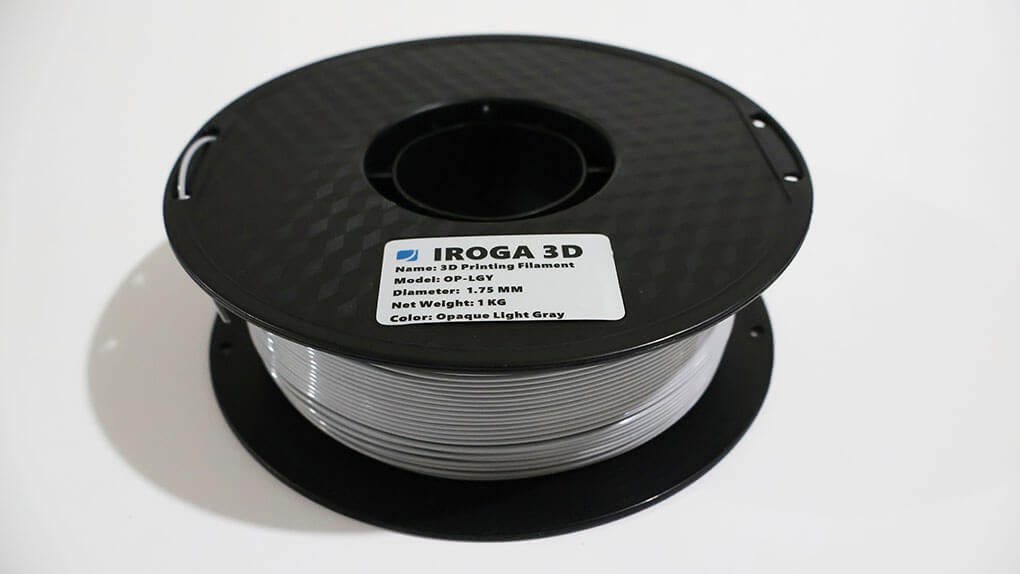

3D Printing Consummables for Long Term Outdoor Use in Opaque Light Gray
Basic Information of 3D Printing Consummables
3D printing consummables, also called 3D printing materials or 3D printing filament, is a kind of thermoplastic material used in fused deposition modeling (FDM) 3D printers. It is a long, thin strand of material (typically 1.75 mm or 2.85 mm in diameter) which is melted and extruded through a heated nozzle to build three-dimensional objects layer by layer. Different types of 3D printing consummables are available on current market, including PLA, PETG, ASA, TPU, ABS, nylon, etc.
Different types of consummables have different applications, and one important application is the signage printing, especially LED illuminated signages and channel letters. In order to print good LED illuminated signages and channel letters, some key factors need to be considered. Iroga’s durable 3D printing consummables are designed for indoor and outdoor signage, it is named PETG-S which is especially good for outdoor illuminated signages and LED channel letters, it is durable, UV resistant, high temperature resistent, low temperature resistent, waterproof, and easy to be printed in FDM 3D printers, it is perfect for long time indoor and outdoor use, exterior use or external use. Click here to know more about the most important factors of outdoor 3D printing filament.
PETG-S is a type of industrial material which means it has superior performance for signage printing and it is produced for industrial purpose, manufacturing 3D printing consummables involves several key steps, from material selection, compounding & pelletizing to filament extrusion, filament spooling, and quality control, filament packaging, etc. If you have the interest to know more about the key steps of producing durable 3D printing consummables for indoor and outdoor signage, click here on how to make 3D printing filament from A to Z.
At the moment, we have some regular colors available for PETG-S, such as opaque white, opaque black, opaque gray, translucent white, translucent red, translucent orange, translucent yellow, translucent green, translucent blue, translucent turquoise, translucent rosy, and translucent clear color as well. Anyway, if we don’t have the color you require, then it could be customized as per your requirement, and the MOQ of one customized color is 100 rolls. The PETG-S from IROGA 3D can be printed both in 3D printer of models (3D model printing machines) and 3D printer of signages (3D signage printing machines), both for amateur users and professional users, both for indoor products and outdoor products.
Technical Data Sheet of 3D Printing Filament PETG-S
| Item | Parameter | Item | Parameter |
| Filament Type | PETG-S | Recommended Printing Temperature | 230 ~ 250 ℃ |
| N.W. / G.W. | 1.0 KG / 1.3 KG | Recommended Bed Temperature | 50 ~ 80 ℃ |
| Length | 340 Meters/Roll | Glass Transition Temperature | 85 ℃ |
| Diameter | 1.75 MM | Maximum Resisting Temperature | 70 ℃ |
| Printing Mode | FDM (Fused Deposition Modeling) | Minimum Resisting Temperature | -40 ℃ |
| Printing Speed | 30 ~ 100 MM/S | Waterproof | Good |
| Transparency Type | Translucent / Opaque | UV Resistance | Good |
| Color | White, Black, Gray, Red, Orange, Yellow, Green, Blue, Turquoise, Rosy, etc | Light Diffusing Effect | Good |
| Spool Size | 200 x 200 x 60 MM | Grade of Printing Difficulty | Easy (No Jamming) |
| Packaging Size | 440 x 440 x 220 MM | Packaging Quantity | 12 Rolls/Carton Box |
| Application | Sign & Model | Function | Outdoor & Indoor |
| Density | 1.25 G/CM³ | Moisture Absorption | 0.12% |
| Tensile Strength | 50 Mpa | Elongation at Yield | 4% |
| Bending Strength | 68 Mpa | Elongation at Break | 21.5% |
| Charpy Impact Strength | 7.9 KJ/M² | Flexural Modulus | 2027 Mpa |
| HS Code | 3916909000 | Durability | 5 ~ 10 Years for Outdoor Use |
FAQ of 3D Printing Filament
| Q1: What is the MOQ of 3D printing filament ? | |
| A1: 1 roll. | |
| Q2: Can the color of filament be customized ? | |
| A2: Yes, the MOQ of color customization is 100 rolls. | |
| Q3: What is the price term ? | |
| A3: We can deal with EXW, FOB, CIF, DDP. | |
| Q4: What is the payment term ? | |
| A4: Usually, it will be wire transfer (telegraphic transfer), with 30% deposit and 70% balance. | |
| Q5: Can you deliver the 3D printing filament to my warehouse ? | |
| A5: Yes, we can. In this case, it will be the DDP term, we will deliver the 3D printing filament until your warehouse or workshop. | |
| Q6: How do you deliver the 3D printing filament ? | |
| A6: It can be by sea or by air, it will be up to you. | |
| Q7: How do you package the 3D printing filament ? | |
| A7: It is packaged by a standard export carton box, and each roll with a vacuum bag. | |
| Q8: What can I do if there's damage during delivery ? | |
| A8: We will be responsible if there's any damage during delivery, we will send new filament for replacement or refund. | |
| Q9: Is there any product warranty ? | |
| A9: Yes, all products from us have one year's quality warranty, and the technical support will be lifetime. | |
| Q10: Is it easy to be jammed in the nozzle ? | |
| A10: No, it's rarely jammed or clogged in the nozzle, it is a very smooth filament which is suitable for all FDM 3D printers. | |
| Q11: Is it heat resistant and UV resistant ? | |
| A11: Yes, our 3D printing filament PETG-S is heat resistant and UV resistant, as a result, it can be outdoor used for long time. | |
| Q12: How much is it ? | |
| A12: Feel free to contact our sales staff for prices and other details via Email, WhatsApp, WeChat, or telephone, we can speak Chinese, English, and Spanish (español). | |
