Basic Information of 3D Sign Printer

3D logo printer, is also called 3D sign printer, 3D signage printer, LED dimensional letter printer or 3D lettering machine in the signage industry, it is a specialized type of big 3D printer designed to fabricate LED dimensional letters or LED signages through additive manufacturing processes.

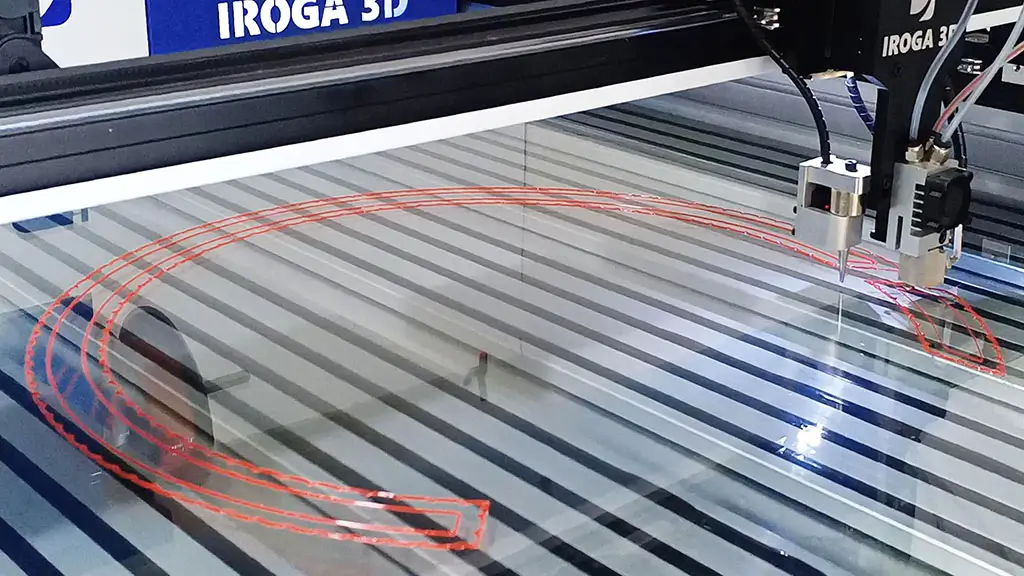

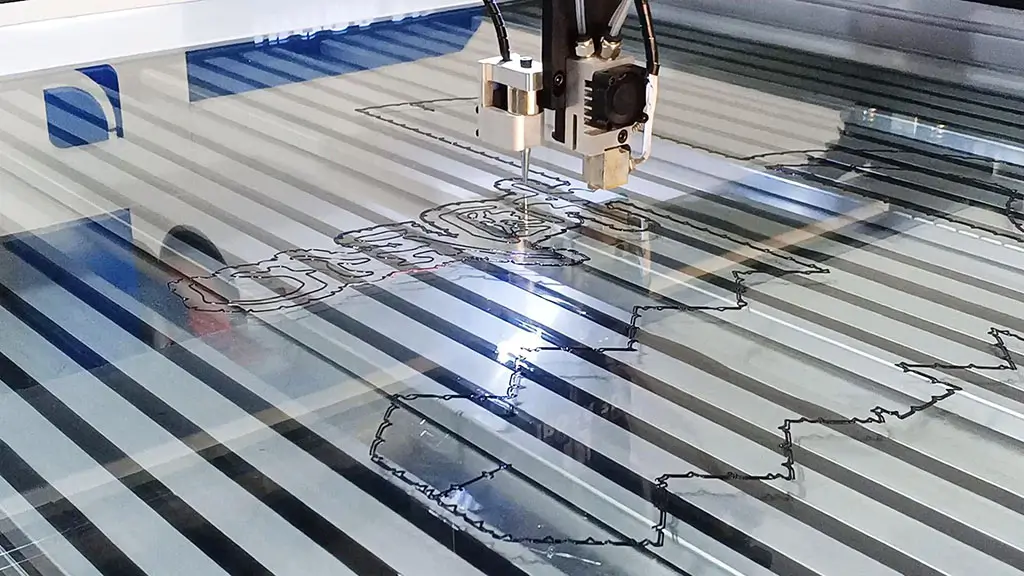

Usually, the printing sizes of 3D logo printers are much bigger than 3D model printers, for instance, the printing width of MITO-120 which is made in China is as big as 48inch (1200mm), and the printing depth of MITO-120 is as big as 90mm. Unlike traditional flat signage or custom acrylic signage, these big 3D logo printers construct 3D logos or LED dimensional letters layer by layer using material which is called 3D printing filament in FDM (Fused Deposition Modeling) mode, enabling the creation of signs with width, depth, and height, both in small size and big size.

It can manufacture customized 3D logos or LED dimensional letters in large quantity or small quantity as per your requirement, with multi-style or multi-color output, with illuminated sign effect or non-illuminated sign effect, and with durability for indoor and outdoor logos, interior and exterior letters. Common applications include LED dimensional letters, brand logos and company signs for storefronts, decorative and architectural elements, informational displays, and promotional advertisement. Based on CorelDRAW and Iroga 3D slicing software, 3D logo printers offer flexibility in design, rapid prototyping, and cost-effective production of low-volume or intricate signs, distinguishing them from subtractive manufacturing like CNC machining.

Nowadays, custom acrylic signs are widely used inside and outside the shops, supermarkets, malls, etc, those custom arylic signs are made in traditional way with traditional machines, such as CNC router, laser cutting machine, engraving machine, bending machine, UV curing machine, slotting machine, welding machine, etc. So why should we use 3D logo printers to make 3D signages and LED dimensional letters? Because there are so many advantages of 3D printed signs against custom acrylic signs, including less machine investment, less space occupation, less material cost, less material waste, less labour cost, more environment friendly, longer automatic working hours, more signage styles, cleaner workshops, etc.

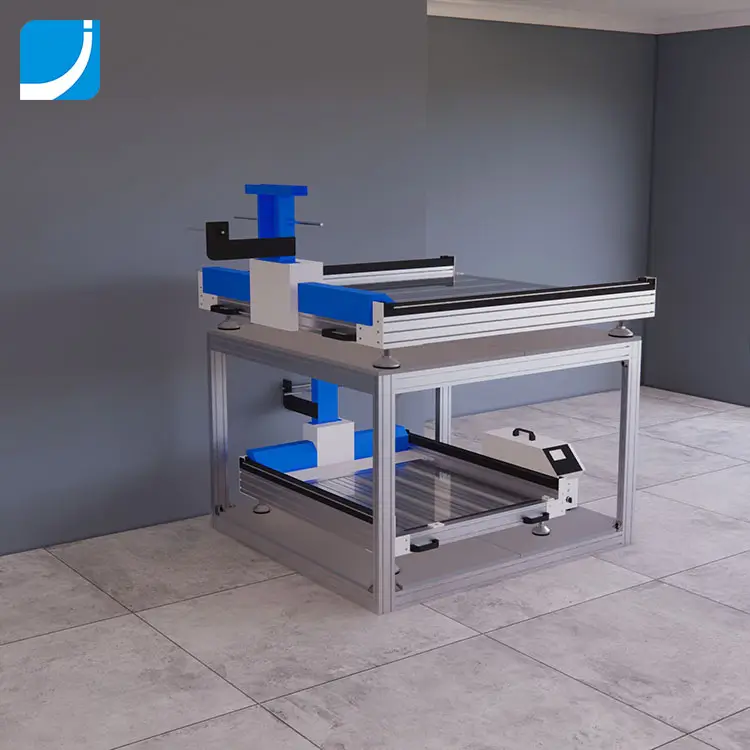

In the case of production of custom acrylic signs in the traditional way, some large machines need to work together, such as CNC router, engraving machine, bending machine, etc, it means that they have to occupy a lot of working space, as a result, it will not only add the cost of sign equipments, but also add the production cost as well, especially in the big cities where the land and houses are very expensive. 3D logo printers are much smaller comparing to the traditional sign machines or equipments, however, we have a further way to save the working space more, that is the 3D printer shelf, click here to know how to use 3D printer shelf appropriately.

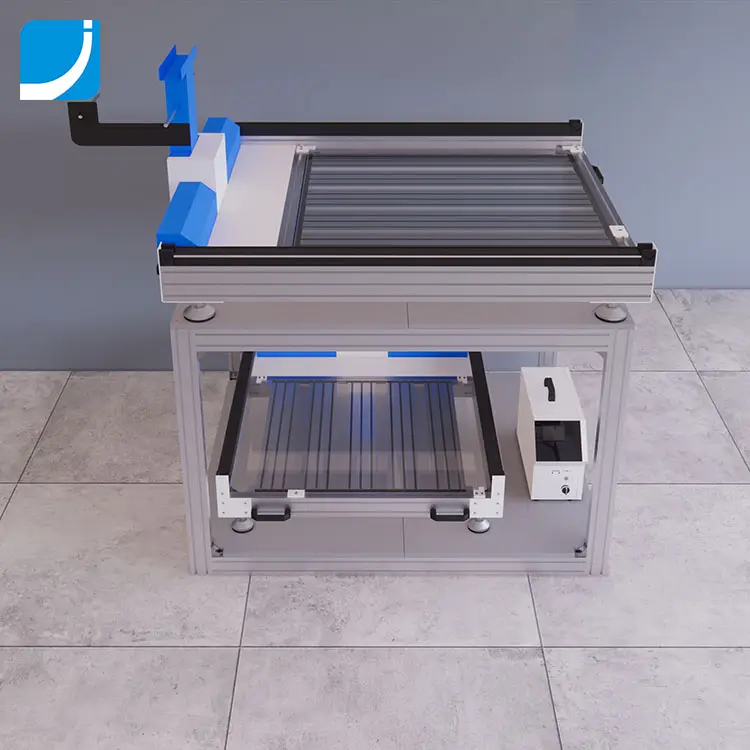

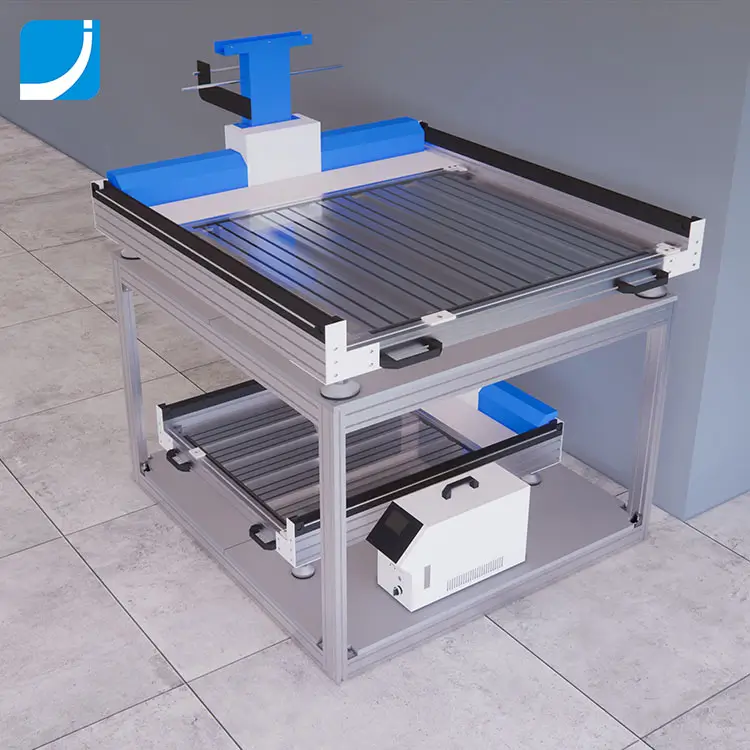

The 3D logo printer is made up of many different parts with different functions, for instance, the printing bed, filament rack, spool holder, XYZ axis, hot end, extruder system, printer case, etc. If you want to know more about the main structure and the crucial parts of a 3D logo printer, you can read this article for details, the key components of 3D sign printer. We are IROGA 3D, all of our products are made in China.

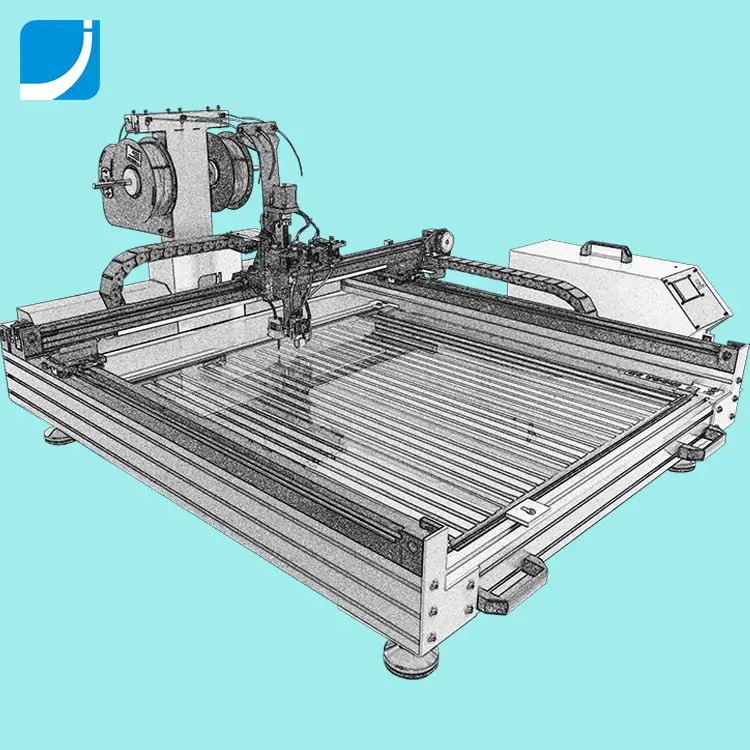

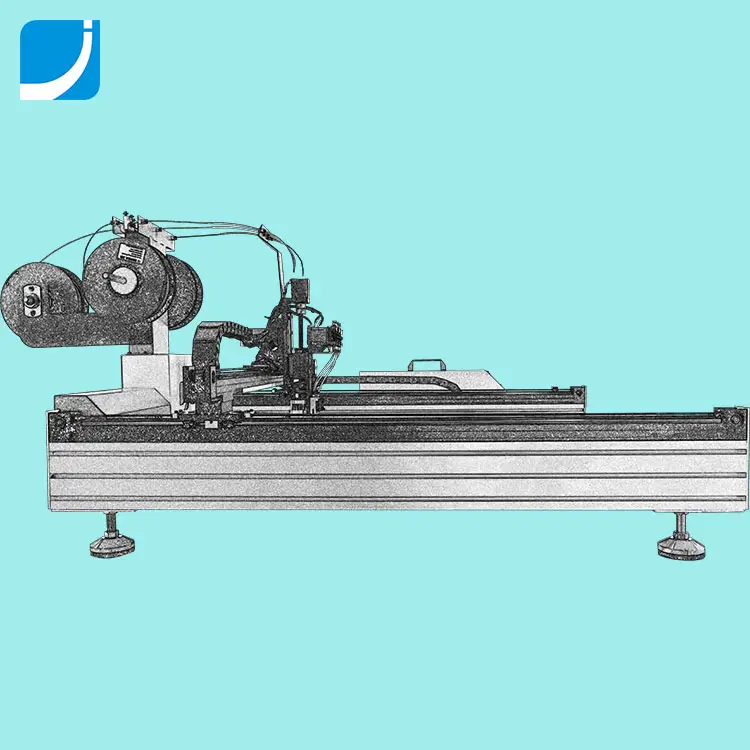

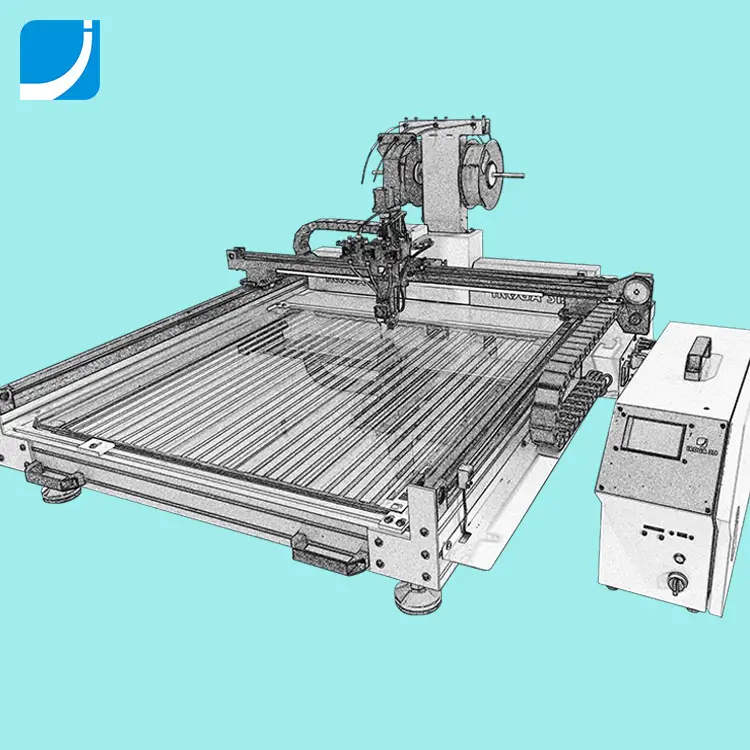

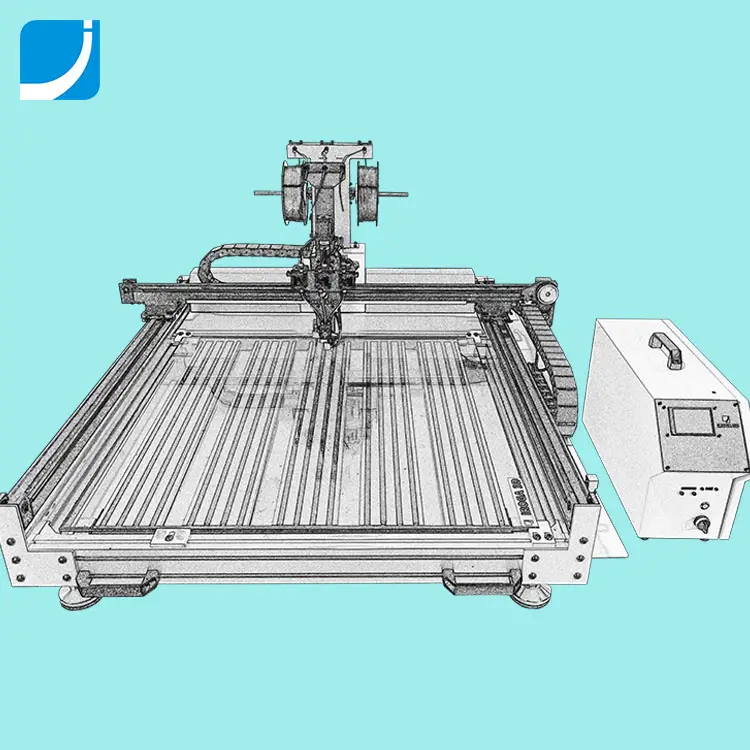

Parameters of 3D Sign Printer ( MITO-80   &   MITO120 )

Item	MITO-80	MITO-120
Interface Language	EN / ES / FR / IT / RU / CN	EN / ES / FR / IT / RU / CN
Packaging Size	1390 x 1340 x 870 MM	1800 x 1700 x 870 MM
Printer Size	1230 x 1100 x 700 MM	1630 x 1500 x 700 MM
Maximum Printing Size	800 x 800 x 90 MM	1200 x 1200 x 90 MM
N.W. / G.W.	95 KG / 140 KG	130 KG / 180 KG
Voltage	110 V / 220 V	110 V / 220 V
Power	720 W	1000 W
Frequency	50 HZ / 60 HZ	50 HZ / 60 HZ
Printing Mode	FDM (Fused Deposition Modeling)	FDM (Fused Deposition Modeling)
Printing Speed	30 ~ 100 MM/S	30 ~ 100 MM/S
Platform Temperature	50 ℃	50 ℃
Nozzle Temperature	230 ℃	230 ℃
Nozzle Aperture	0.8 MM	0.8 MM
Compatible Filament	PLA / PETG / ASA / ABS	PLA / PETG / ASA / ABS
Filament Diameter	1.75 MM	1.75 MM
Filament Installed Quantity	3 Rolls	3 Rolls
HS Code	8485200000	8485200000





Traditional Sign Machine     VS     Modern 3D Sign Printer

Item		Traditional Sign Machine	Modern 3D Sign Printer
Machine Type		Bending Machine, Welding Machine, Cutting Machine, Engraving Machine, etc	One 3D Sign Printer Is Enough √
Machine Investment		More Investment	Less Investment √
Material Cost		More Expensive (Acrylic Face & Metal Side)	Less Expensive (3D Printing Filament) √
Material Waste		More Waste	Less Waste √
Manufacturing Mode		Subtractive Manufacturing	Additive Manufacturing √
Type of Work		More Manual Work	More Automatic Work √
Labor Cost		More Workers, More Cost	Less Workers, Less Cost √
Sign Face Color		Single Face Color Only	Multiple Face Colors Available √
Sign Face Style		Flat Face Only	Flat Face or Mesh Face √
Sign Side Color		Single Side Color Only	Multiple Side Colors Available √
Sign Side Style		Straight Side Only	Straight Side, Beveled Side, or Curved Side √
Sign Grade		Simple Sign Only	Simple Sign or Complicated Sign √
Illuminating Option		Frontlit or Backlit	Frontlit, Backlit, or Sidelit √
Working Space		More Space Required	Less Space Required √
Workshop		Messy	Tidy √
UV Resistance		Less UV Resistant	More UV Resistant for Longer Outdoor Use √





FAQ of 3D Sign Printer

	Q1: What is the MOQ of 3D sign printer ?
	A1: 1 set.
	Q2: Can the brand and color be customized ?
	A2: Yes, the MOQ of customization is 10 sets.
	Q3: What is the price term ?
	A3: We can deal with EXW, FOB, CIF, DDP.
	Q4: What is the payment term ?
	A4: Usually, it will be wire transfer (telegraphic transfer), with 30% deposit and 70% balance.
	Q5: Can you deliver the 3D sign printer to my warehouse ?
	A5: Yes, we can. In this case, it will be the DDP term, we will deliver the 3D sign printers until your warehouse or workshop.
	Q6: How do you deliver the 3D sign printer ?
	A6: It can be by sea or by air, it will be up to you.
	Q7: How do you package the 3D sign printer ?
	A7: It is packaged by a fumigation free wooden box.
	Q8: What can I do if there's damage during delivery ?
	A8: We will be responsible if there's any damage during delivery, we will send new spart parts for replacement or refund.
	Q9: Is there any product warranty ?
	A9: Yes, all products from us have one year's quality warranty, and the technical support will be lifetime.
	Q10: Is there any product training ?
	A10: Yes, we will provide video tutorials of the machine and the software, besides, online meetings are available if required.
	Q11: How much is it ?
	A11: Feel free to contact our sales staff for prices, catalogues and any other details via Email, WhatsApp, WeChat, or telephone, we can speak Chinese, English, and Spanish (español).
