Large Format 3D Printer with UV Curing Machine for LED Letters and Illuminated Signages
Basic Information of Large Format 3D Printer with UV Curing Machine

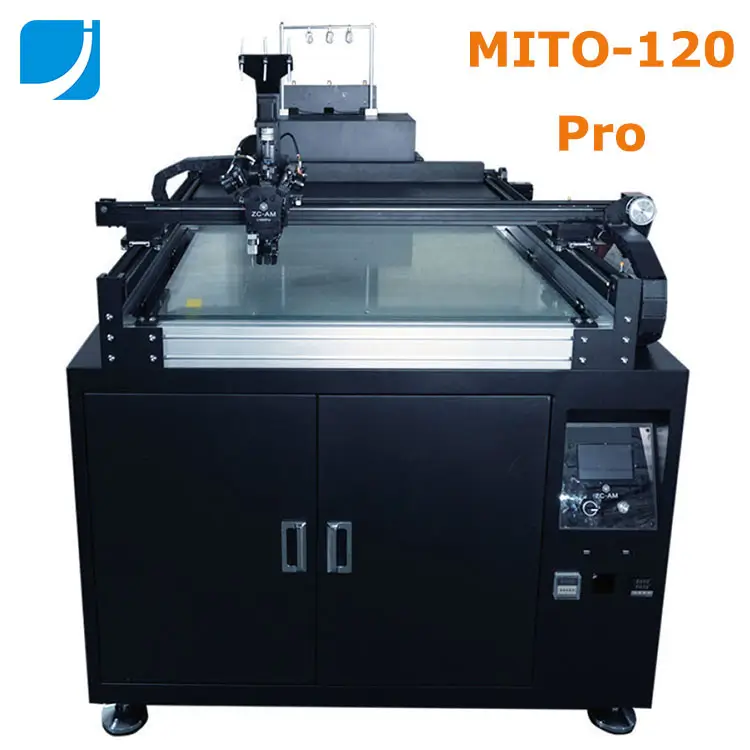

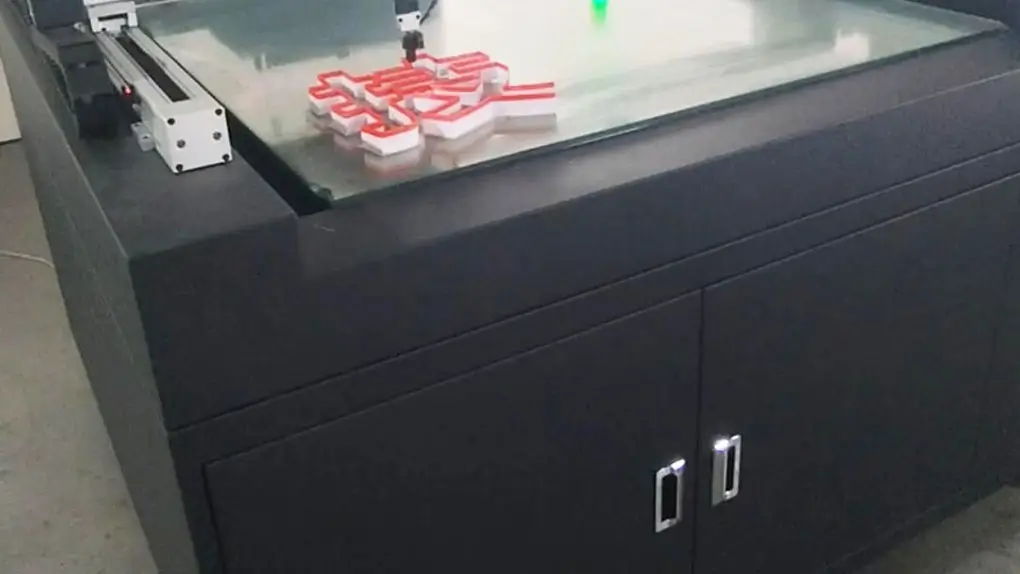

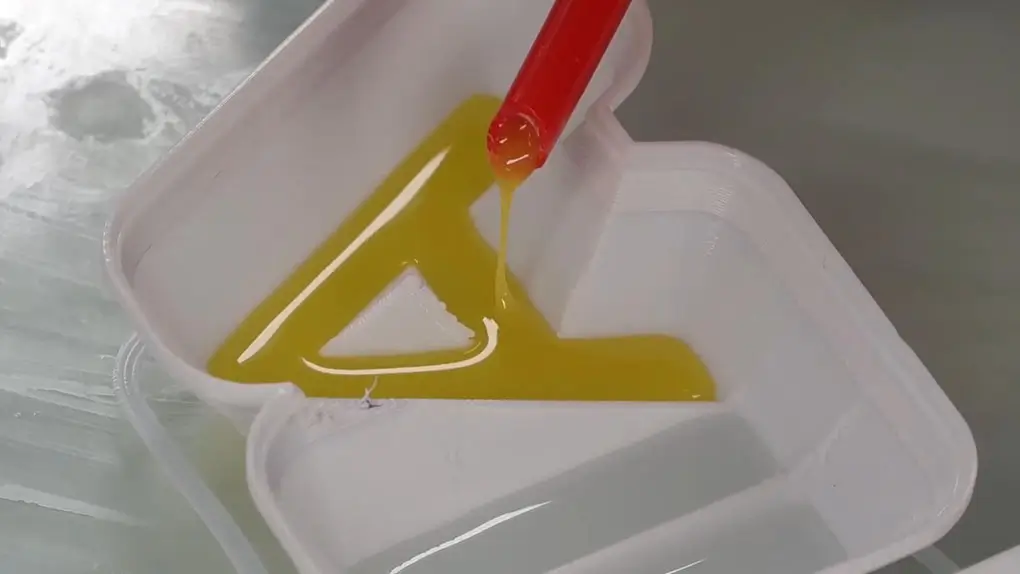

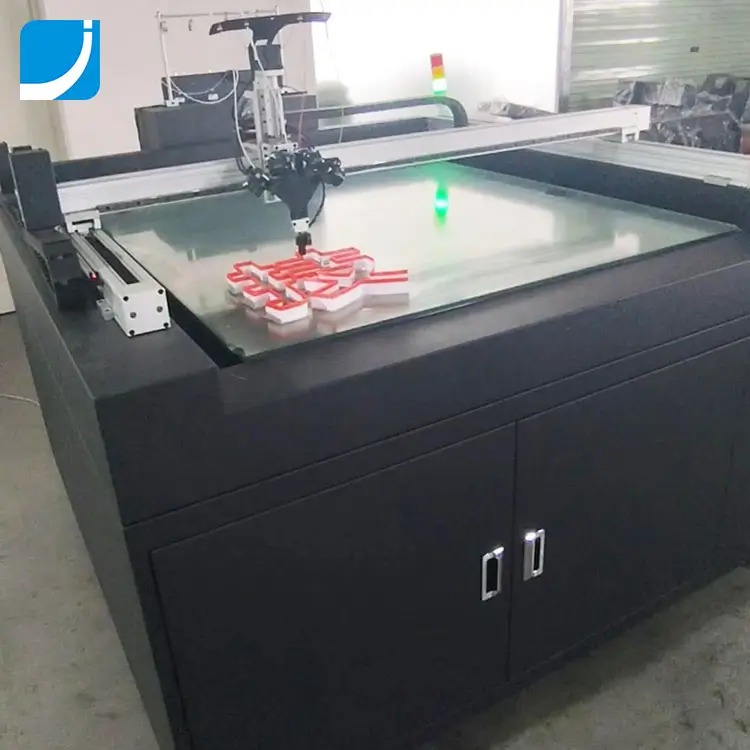

This is a combination of large format 3D signage printer and UV curing machine for industrial purpose, the 3D signage printer is on the top and the UV curing machine is at the bottom. It combines the 3D printing convenience for side wall and the smooth quality for face panel, if you like the convenience and low cost of 3D printing, meanwhile, if you have higher standard of smoothness for the face panel, then this large format 3D printing machine will be the perfect choice. First of all, print the signages or channel letters on the top printer, secondly, pour the liquid acrylic into the signages or channel letters, thirdly, move the printed signages or channel letters with liquid acrylic into the bottom UV curing machine, later, turn on the UV curing machine and make the liquid acrylic into solid acrylic, finally, we can get signages or channel letters with 3D printed side wall and acrylic face panel.

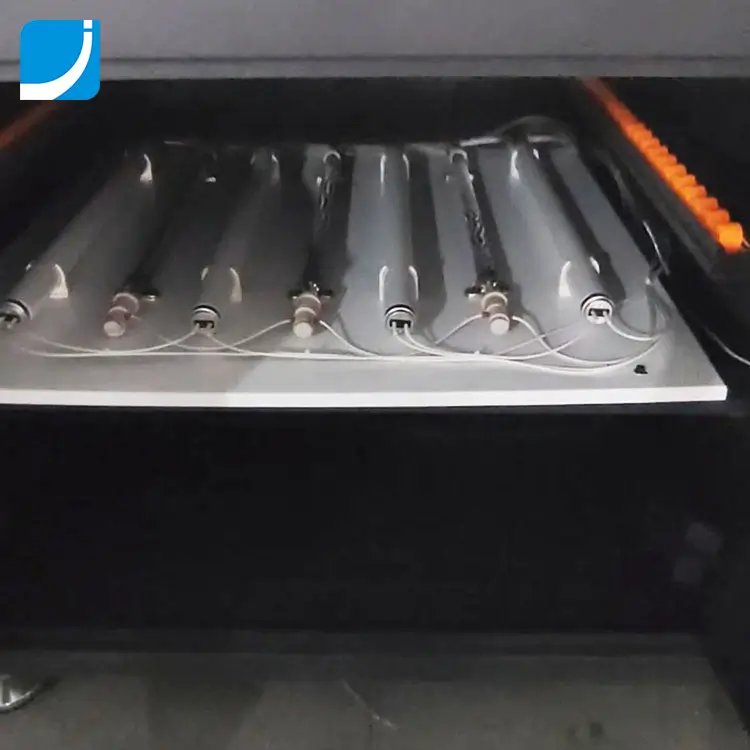

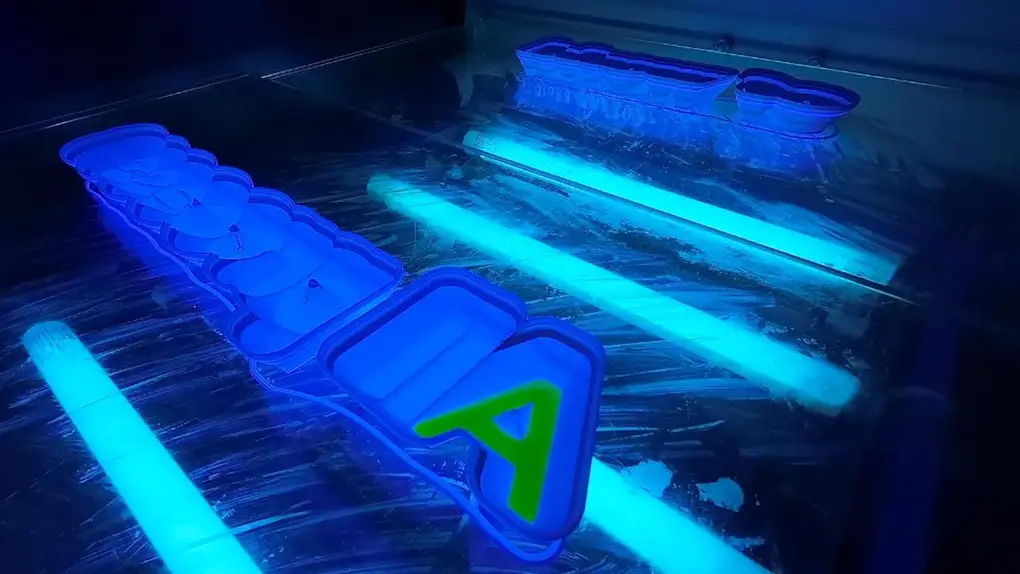

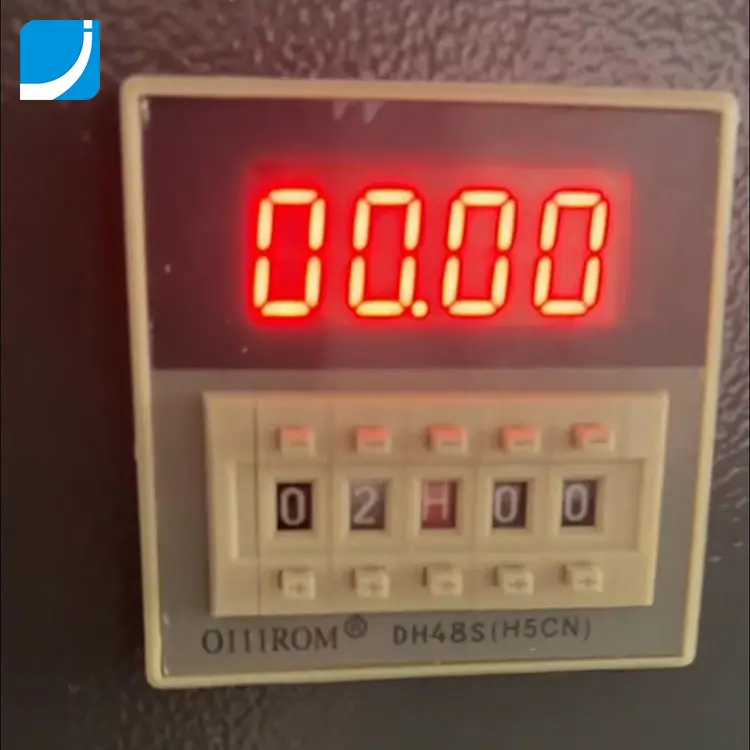

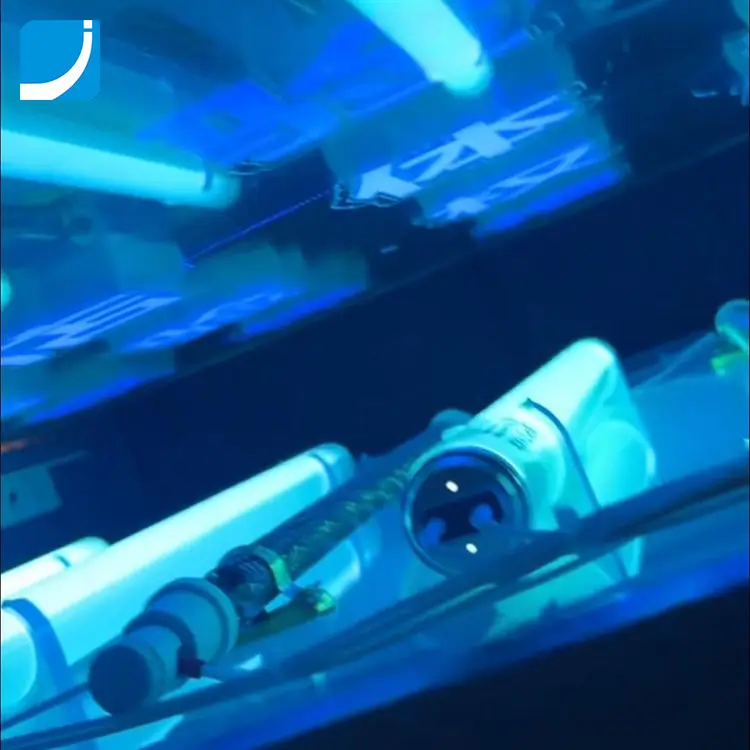

A UV curing machine is an industrial device that uses high-intensity ultraviolet (UV) light to instantly dry, harden, or cure liquid acrylic, adhesives, or resins. This process is called UV curing, it takes 90 minutes for white acrylic and it takes 120 minutes for other colors, it is a photochemical reaction: photoinitiators in the material absorb UV energy and trigger polymerization, transforming the liquid into a solid cross-linked polymer network. Simply speaking, this large format UV curing machine is a post-processing device for 3D printing under FDM or SLA mode, it uses ultraviolet light to fully solidify liquid acrylic or resin for face panel, so it is the best partner of a 3D signage printer.
Parameters of Large Format 3D Signage Printer & UV Curing Machine ( MITO-80 Pro & MITO-120 Pro )
| Item | MITO-80 Pro | MITO-120 Pro |
| Interface Language | EN / ES / FR / PT / IT / DE / RU / TR / CN | EN / ES / FR / PT / IT / DE / RU / TR / CN |
| Packaging Size | 1390 x 1390 x 1520 MM | 1830 x 1790 x 1520 MM |
| Maximum Printing Size | 800 x 800 x 120 MM | 1200 x 1200 x 120 MM |
| UV Curing Time | 90 ~ 120 M | 90 ~ 120 M |
| N.W. / G.W. | 212 KG / 315 KG | 318 KG / 441 KG |
| Voltage | 110 V / 220 V | 110 V / 220 V |
| Power | 720 W | 1000 W |
| Frequency | 50 HZ / 60 HZ | 50 HZ / 60 HZ |
| Printing Mode | FDM (Fused Deposition Modeling) | FDM (Fused Deposition Modeling) |
| Printing Speed | 40 ~ 120 MM/S | 40 ~ 120 MM/S |
| Platform Temperature | 50 ~ 120 ℃ | 50 ~ 120 ℃ |
| Nozzle Temperature | 230 ~ 240 ℃ | 230 ~ 240 ℃ |
| Nozzle Aperture | 0.6 MM / 0.8 MM | 0.6 MM / 0.8 MM |
| Compatible Filament | PLA / PETG / ASA / ABS | PLA / PETG / ASA / ABS |
| Filament Diameter | 1.75 MM | 1.75 MM |

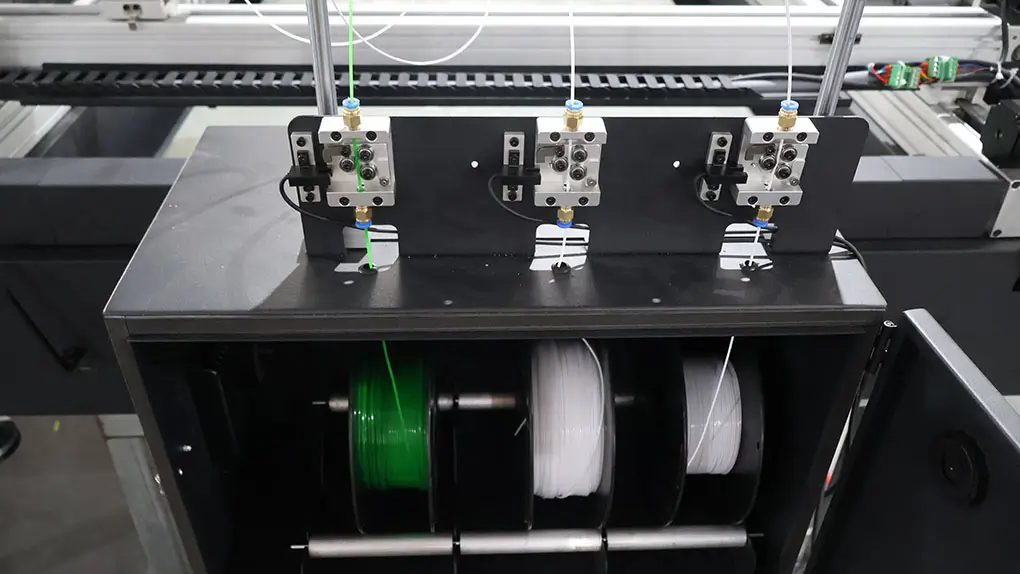

| Filament Installed Quantity | 3 Rolls | 3 Rolls |
| HS Code | 8485200000 | 8485200000 |
Traditional Sign Machine VS Large Format 3D Printer for Illuminated Signages
| Item | Traditional Sign Machine | Modern 3D Sign Printer | |
| Machine Type | Bending Machine, Welding Machine, Cutting Machine, Engraving Machine, etc | One 3D Sign Printer Is Enough | |
| Machine Investment | More Investment | Less Investment | |
| Material Cost | More Expensive (Acrylic Face & Metal Side) | Less Expensive (3D Printing Filament) | |
| Material Waste | More Waste | Less Waste | |
| Manufacturing Mode | Subtractive Manufacturing | Additive Manufacturing | |
| Type of Work | More Manual Work | More Automatic Work | |
| Labor Cost | More Workers, More Cost | Less Workers, Less Cost | |
| Sign Face Color | Single Face Color Only | Multiple Face Colors Available | |
| Sign Face Style | Flat Face Only | Flat Face or Mesh Face | |
| Sign Side Color | Single Side Color Only | Multiple Side Colors Available | |
| Sign Side Style | Straight Side Only | Straight Side, Beveled Side, or Curved Side | |
| Sign Grade | Simple Sign Only | Simple Sign or Complicated Sign | |
| Illuminating Option | Frontlit or Backlit | Frontlit, Sidelit, or Backlit | |
| Working Space | More Space Required | Less Space Required | |
| Workshop | Messy | Tidy | |
| UV Resistance | Less UV Resistant | More UV Resistant for Longer Outdoor Use | |
FAQ of Large Format 3D Printing Machine for Illuminated Signages
| Q1: What is the MOQ of 3D sign printer ? | |
| A1: 1 set. | |
| Q2: Can the brand and color be customized ? | |
| A2: Yes, the MOQ of customization is 10 sets. | |
| Q3: What is the price term ? | |
| A3: We can deal in different price terms, for instance, EXW, FOB, CIF, DDP. | |
| Q4: What is the payment term ? | |
| A4: Usually, it will be wire transfer (telegraphic transfer), with 30% deposit and 70% balance. | |
| Q5: Can you deliver the 3D sign printer to my warehouse ? | |
| A5: Yes, we can. In this case, it will be the DDP term, we will deliver the 3D sign printers until your warehouse or workshop. | |
| Q6: How do you deliver the 3D sign printer ? | |
| A6: It can be by sea, by air, or by train, it will be up to you. | |
| Q7: How do you package the 3D sign printer ? | |
| A7: It is packaged by a fumigation free wooden box. | |
| Q8: What will you do if there's damage during delivery ? | |
| A8: We will be responsible if there's any damage during delivery, we will send new spare parts for replacement or refund. | |
| Q9: Is there any product warranty ? | |
| A9: Yes, all products from us have 18 months' quality warranty, and the technical support will be lifetime. | |
| Q10: Is there any product training ? | |
| A10: Yes, we will provide video tutorials of the machine and the software, besides, online meetings are available if required. | |
| Q11: How much is it ? | |
| A11: Feel free to contact our sales staff for prices, catalogues and any other details via Email, WhatsApp, WeChat, or telephone, we can speak Chinese, English, and Spanish (español). | |
